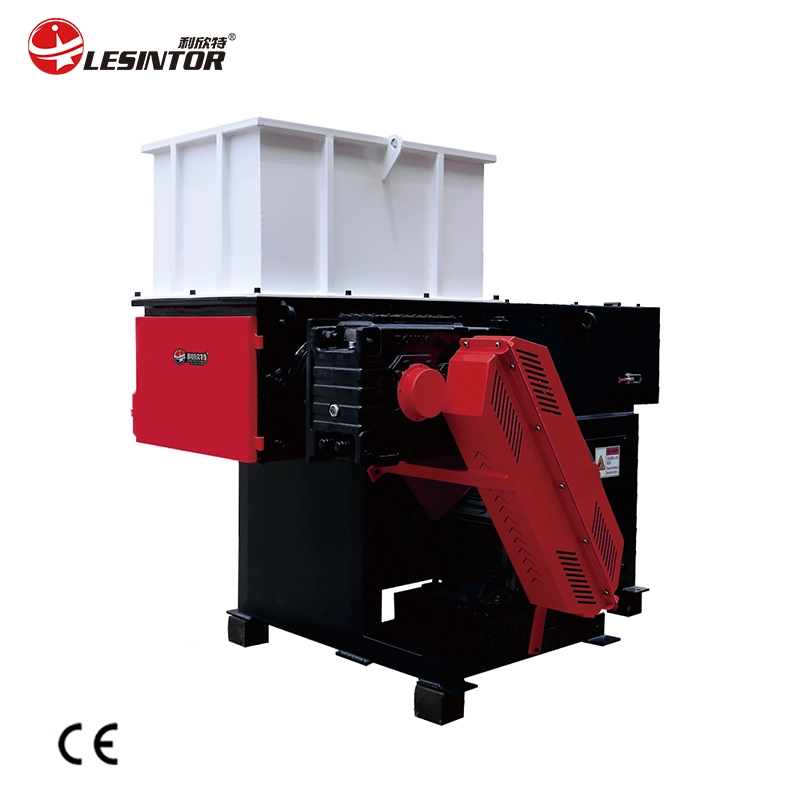

Industrial Single-Shaft Shredder for Fiberglass Recycling -Lesintor
Minimum Order Quantity：1
LXT-SS-600/ LXT-SS-800/ LXT-SS-1000/ LXT-SS-1300
The single-shaft shredder is the industrial crushing 'Hercules'. Its core strengths—robust structure, massive torque, and powerful processing—excel at handling large, hard, tough solid waste. Replacing the screen allows flexible control of discharge size, making it indispensable in resource recycling, waste pretreatment, biomass processing, etc.
Selection requires matching material properties and goals, focusing on power, tool performance, and safety. Despite energy and maintenance costs, its power remains irreplaceable in many applications."
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameter
| Model | LXT-SS-600 | LXT-SS-800 | LXT-SS-1000 | LXT-SS-1300 |
| Main motor power(kw) | 22 | 37 | 45 | 75 |
| Hydraulic station power(kw) | 2.2 | 3 | 4 | 5.5 |
| Rotary knife diameter(mm) | 300 | 400 | 400 | 400 |
| Number of rotating knives | 40 | 56 | 68 | 88 |
| Number of fixed knives | 2+2 | 2+2 | 2+2 | 2+2 |
| Rotating cutter shaft speed(r/min) | 80 | 80 | 80 | 80 |
| Shredding capacity(kg/h) | 300-500 | 500-700 | 800-1000 | 1000-1300 |
| Feeding diameter(mm) | 600L*800W | 800L*1200W | 1000L*1400W | 1300L*1700W |
| Host weight(kg) | 2600 | 3800 | 4800 | 5800 |
| Overall dimensions(mm) | 2200*1410*1850 | 2900*1700*2200 | 3200*1950*2200 | 3400*2200*2200 |
| Specifications are subject to change without notice. | ||||
Features
● Powerful Shredding force:
The single-shaft design combined with the low-speed, high-torque drive enables it to handle very hard, tough and bulky materials (e.g., large tires, appliance shells, metal drums, large plastics, industrial waste, wood pallets, textile bales, etc.), which is its core advantage.
● Wide processing range:
A wide range of complex materials can be processed, including mixed waste (e.g., household appliances, automotive dismantling debris), plastics (rigid, flexible film, tubes), rubber (tires), wood, paper, fibers, lightweight metals (e.g., aluminum cans), and e-waste.
产品结构
● Controlled discharge size:
By changing the screen with different apertures, the size of the final product can be precisely controlled to meet the requirements of subsequent sorting, pelletizing, incineration or landfill.
● Relatively simple and sturdy structure:
Compared with dual-axis or multi-axis shredders, single-axis design has relatively fewer parts, more compact structure, good rigidity, strong impact resistance, and relatively intuitive maintenance (but still requires professional maintenance).
● High throughput:
Single shaft shredders can usually achieve a high throughput for the materials they are designed to handle.
● Stability:
Provides continuous and reliable processing capacity under steady state operation.
Product Details
Gearbox
The gearbox is weldedwith steel plates,whichhas high precision,goodcontact, low noise andlong service life.
Hydraulic System
The power drive of thepush plate continuouslytransports thematerials to be shreddedto the shredder.
Pure copper motor
Pure copper core motor,overload protection,stable performance.verylow failure rate andlong life.
High ouality alloysteel knives
Forged from fine steelsharp andwear-resistant.
Main application areas
● Resource Recovery: Primary crushing of waste plastics, waste rubber (especially tires), waste paper, waste metal (pre-treatment), electronic waste (WEEE).
● Waste treatment: Reduction and pre-treatment of bulky household waste (furniture, mattresses), industrial waste, commercial waste.
● Biomass Energy: Crushing of biomass such as wood, branches, straw, etc. for the preparation of fuels (e.g. RDF/SRF) or biogas feedstock.
● Scrap car dismantling: Crushing of car shells, interior parts, non-metallic parts, etc.
● Waste electrical appliances dismantling: crushing refrigerators, washing machines, air conditioning shells, etc.
● Paper industry: waste paper bundles of broken unpacking.
● Confidential Destruction: Secure destruction of documents, hard disk, products (anti-counterfeit destruction).
FAQs
1
What materials can your single shaft shredder process?
Our shredders handle various materials including: Plastics (PET bottles, films, pipes, lumps) ,Rubber (tires, conveyor belts) ,Wood (pallets, branches, furniture waste) ,Metal (aluminum cans, thin wires) ,Municipal solid waste (MSW), e-waste, and textiles. Customizable blades available for specific materials.
2
How does motor power affect performance?
Motor power (15-200HP) directly impacts:
● Throughput capacity (e.g., 500-5000kg/h for plastics).
● Torque output for hard materials (e.g., thick metals).
● Energy efficiency (Variable Frequency Drive optional).
We recommend sizing based on material density and hourly output needs.
● Throughput capacity (e.g., 500-5000kg/h for plastics).
● Torque output for hard materials (e.g., thick metals).
● Energy efficiency (Variable Frequency Drive optional).
We recommend sizing based on material density and hourly output needs.
3
What blade types do you offer?
Three blade options for different scenarios:
● Scissor-type blades: High precision for thin materials (films, fibers).
● Hook-shaped blades: Maximum torque for tough items (tires, pipes).
● Solid carbide blades: Extreme durability for abrasive or mixed waste.
● Scissor-type blades: High precision for thin materials (films, fibers).
● Hook-shaped blades: Maximum torque for tough items (tires, pipes).
● Solid carbide blades: Extreme durability for abrasive or mixed waste.
4
How to maintain the blades?
Sharpening: Rotate/grind blades every 100-300 operating hours (material-dependent).
● Replacement: Typically after 3-5 sharpening cycles.
● Replacement: Typically after 3-5 sharpening cycles.
5
What safety features are included?
Certified with CE standards: Emergency stop buttons,Electrical cabinet lockout system,Overload auto-reverse protection,Hydraulic pusher with anti-jam detection.
6
Can it handle wet or dirty materials?
Yes! Our shredders feature:
● Sealed bearing housings (IP65 rating).
● Corrosion-resistant SS304/316 chambers (optional).
● Self-cleaning screen design to prevent clogging.
● Sealed bearing housings (IP65 rating).
● Corrosion-resistant SS304/316 chambers (optional).
● Self-cleaning screen design to prevent clogging.
7
What’s the lead time and shipping?
Standard models: 10 days after deposit.
● Customized orders: 20-30days.
● Shipping: FOB/CIF terms; container-optimized disassembly (20ft/40ft HQ).
● Customized orders: 20-30days.
● Shipping: FOB/CIF terms; container-optimized disassembly (20ft/40ft HQ).
8
Do you provide after-sales support?
Global coverage includes: 12-month warranty (excludes wear parts) ,Online troubleshooting via video call.
9
How to choose the right screen size?
Screen mesh (Φ10-100mm) determines output size:
● Smaller holes (Φ10-20mm): For fine shredding (e.g., RDF production).
● Larger holes (Φ50-100mm): Coarse reduction (pre-chipping for recycling lines).
● Smaller holes (Φ10-20mm): For fine shredding (e.g., RDF production).
● Larger holes (Φ50-100mm): Coarse reduction (pre-chipping for recycling lines).
