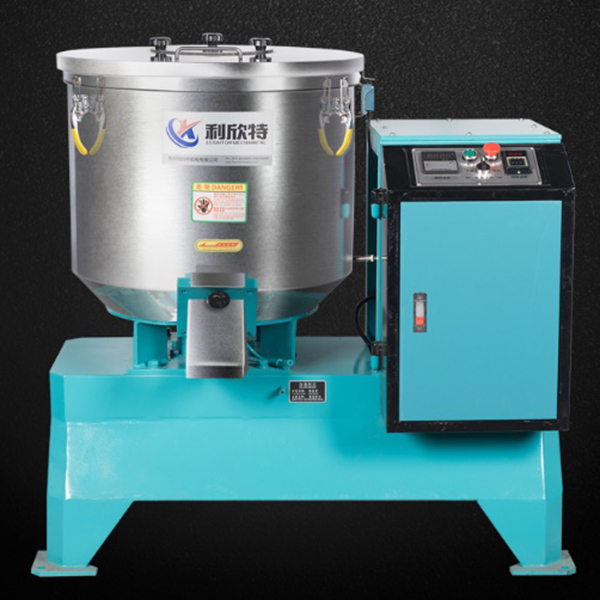

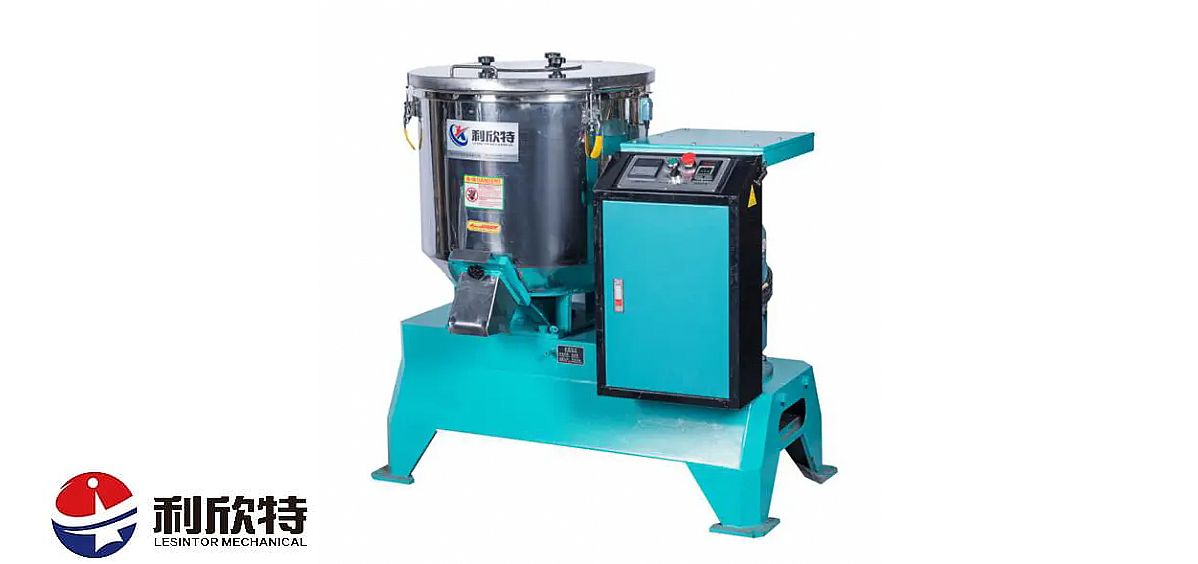

Lesintor High Speed Drying Machine

Lesintor high-speed drying machine uses high-speed rotating friction heating to release the water molecules in the raw material, so as to achieve the dual functions of high-efficiency drying and uniform color mixing, especially suitable for powder, crushing, or washing recycled materials drying/color mixing processing, simple discharging, no need to start the motor when discharging.

    oops...!

    no product data.

    Go to homepage



    Machine features

    • With automatic temperature control, timing, overload protection, and other automatic functions; Double layer stainless steel insulation bucket, blade, brake, and bucket cover are made of stainless steel material;

    • Specific automatic temperature control, timing, overload protection, and other functions.

    • Stainless steel barrel and pulp leaf to ensure that the plastic raw material is not contaminated.

    Product picture

    drying machine

    Application industry

    drying machine application industry

    Certifications:

    GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate"
    GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate"
    CCTV advertising ID number:1962573230050061 "CCTV Advertising Broadcasting Certificate."
    "Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry"

    Product parameters

    Model 25 50 100 200
    Power(kw) 5.5 7.5 15 30
    Number of matches(hp) 7.5 10 20 40
    Outline size(mm) 1000*690*1240 1170*830*1350 1340*980*1520 1700*1300*1700
    Voltage(v) 380V 50HZ
    Mixing quantity(kg) 25 50 100 200
    Speed(R/min) 480
    Machine weight(kg) 200 230 270 700

    Partner: (names not listed in order)

    Lesintor partner

    Product Details

    drying machine

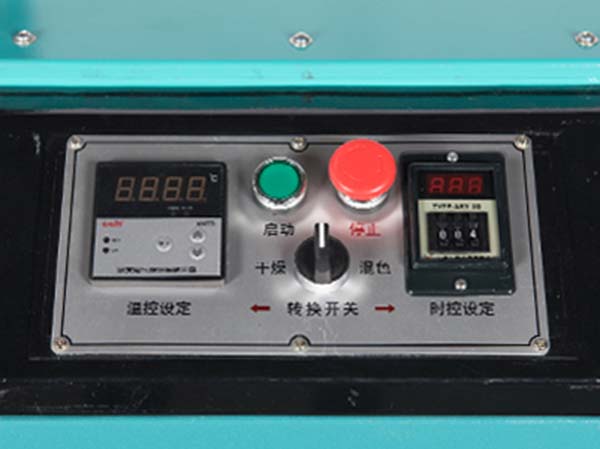

    The control panel

    Users can automatically set the temperature and time and switch between drying and color mixing functions.

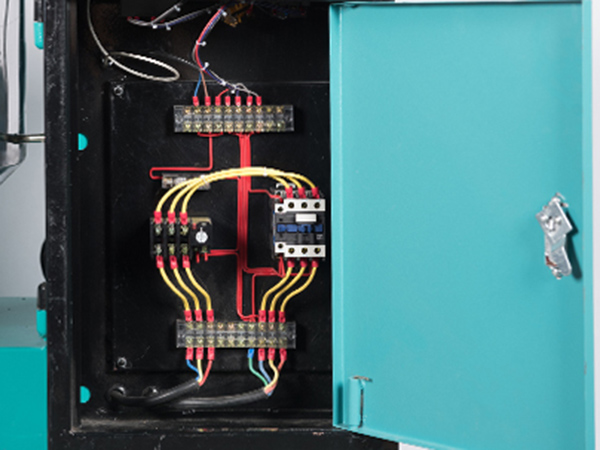

    Control electric box

    Delixi contactor, wiring neat, clear at a glance

    drying machine electric box
    drying machine electric box

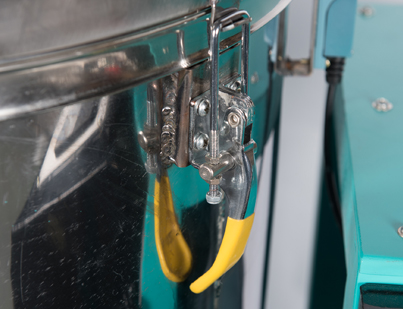

    Travel switch

    Open the lid and immediately stop running to protect the safety of man and machine.

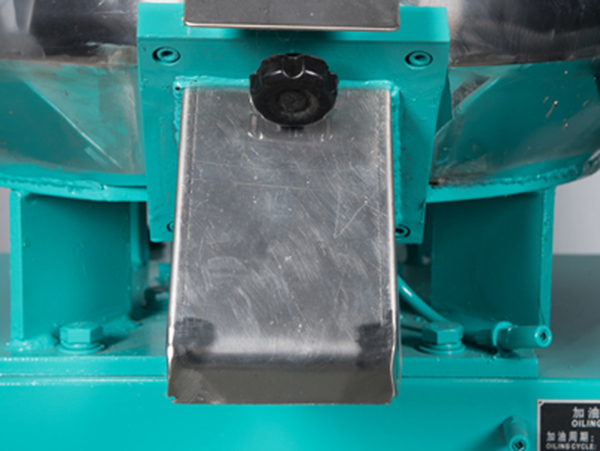

    Feed opening

    Increase the blanking mouth, blanking more quickly.

    drying machine feed opening
    drying machine feed opening

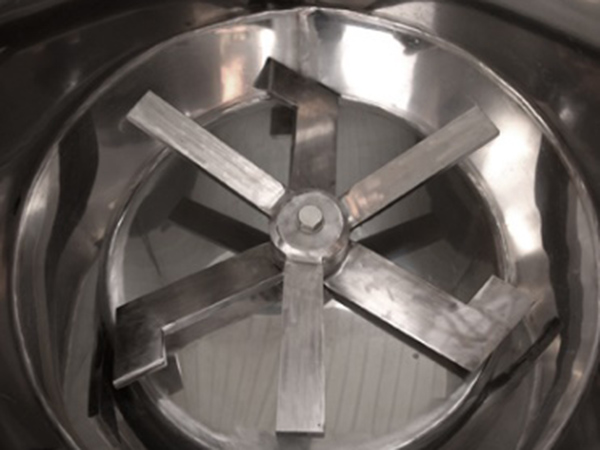

    Thicken and widen the blade

    Scientific and reasonable structure in the work can be fully mixed raw materials, and the load is reduced to the minimum, saving time and electricity.

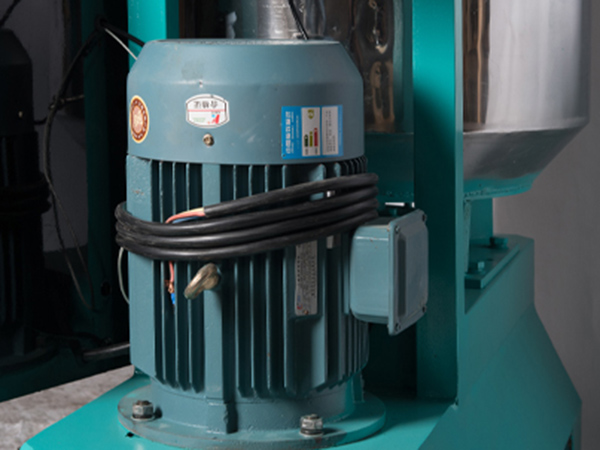

    Pure copper motor

    100 % pure copper wire is more powerful and has a long life

    drying machine

    Features:

    1. Integrated intelligent control integrates temperature and time control into one, which is convenient for setting various parameters.

    2. Real-time monitoring, real-time adjustment, and more accurate

    3. Conical shape angular design of the cylinder with a square blade so that the raw material rotation faster, the motor utilization rate is higher, and easier to clean in the barrel

    4. Double-layer insulation device Double-layer stainless steel insulation barrel, blade, brake, barrel cover, and so on are stainless steel material
