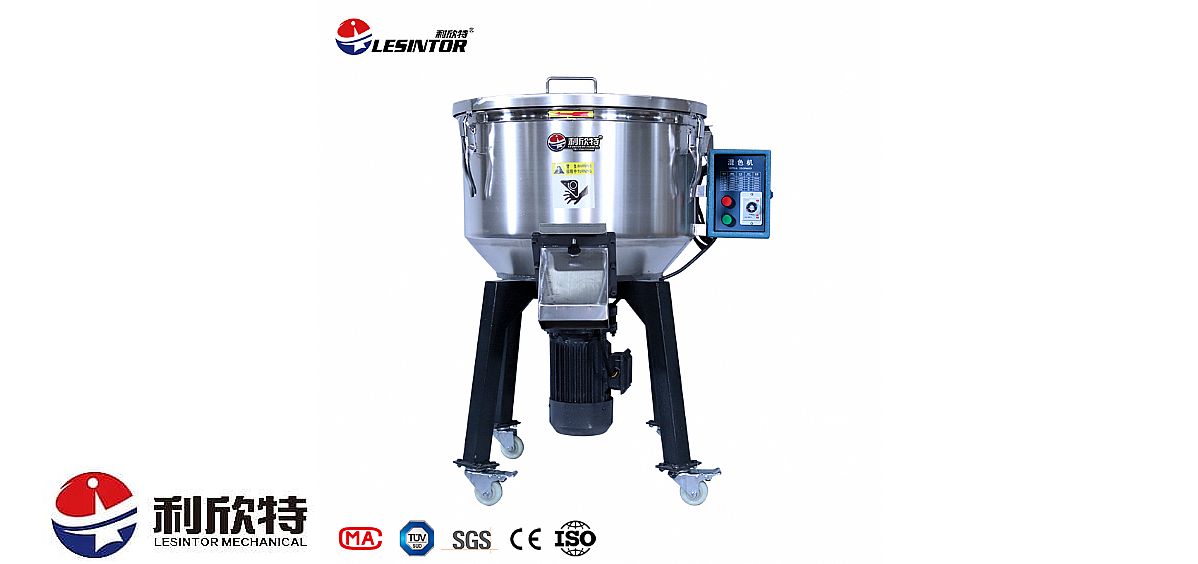

High-end Vertical Mixing Machine

Lesintor high-end mixer has a wide range of applications and can be used for mixing various plastic particles, feed, dry powder, etc. This product has the characteristics of fast, uniform, and zero dead angle. The vertical design is not only elegant in appearance but also compact in size, which is convenient for mobile operation and use. Maximize the drying frequency and efficiency of this machine with multiple scenarios and multiple products.

Shipping Zones:

Worldwide

Delivery Time:

Available on Request

Payment Options:

Available on Request

Ref:

HV01

Inquiry

Write a Review

Machine characteristics:

• It is made of imported stainless steel, which is strong, durable, and easy to clean.

• Vertical deceleration to ensure low noise and long-lasting durability.

• The structure is scientific and reasonable, the mixing ability is strong, and the raw materials can be fully extracted within 3 minutes.

• It occupies a small area, and the caster device is easy to move.

• With a safety switch, the operation is safe.

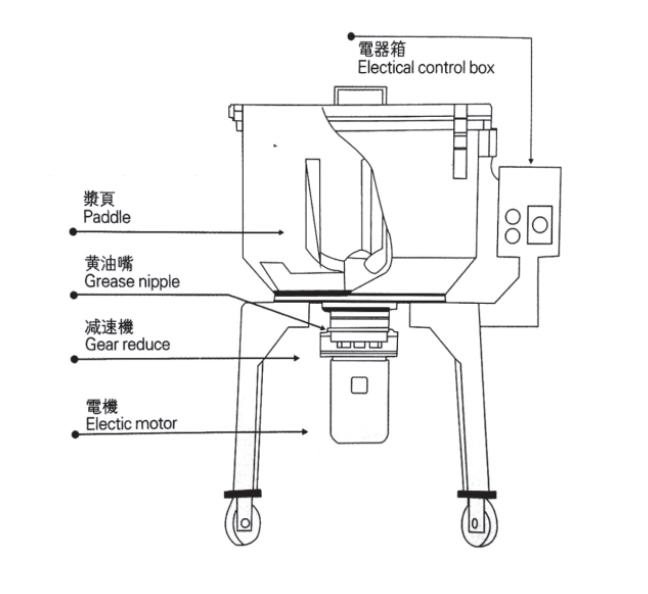

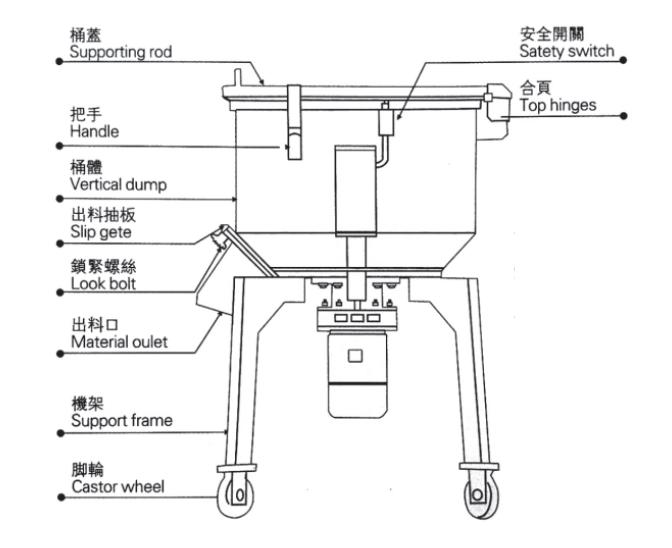

Basic Structure

Certifications:

GB/T19001-2016/ISO9001:2015 "Management System Certification Certificate"

GB/T 24001-2016/ISO14001:2015 "Management System Certification Certificate"

CCTV advertising ID number：1962573230050061 "CCTV Advertising Broadcasting Certificate."

"Quality·Service·Integrity AAA Enterprise" National Key Recommended Products in China's Plastics Industry"

Product parameters

Model	50	100	150	200	300	500
Voltage(V)	380V/50HZ (customizable)
Power（KW）	1.5	3	4	5.5	7.5	11
Mixing quantity（KG）	50	100	150	200	300	500
Outline size(M) diameter*height	0.87*1	0.97*1.26	1.1*1.37	1.3*1.46	1.3*1.56	1.62*1.65
Barrel bore diameter*height(MM)	620*440	750*560	880*610	1000*660	1100*820	1500*800
Barrel bore diameter*height(MM)	550	630	540	630	670	820
Spindle speed（R/Min）	80	80	68	68	61	63
Barrel wall thickness（MM）	1.5	2	2	2.5	2.5	2
Blade thickness * width（MM）	8*50	8*60	12*60	12*60	12*60	12*60
Thickness of iron base plate（MM）	10	10	12	12	12	12
Weight（KG)	125	180	250	300	320	460

Partner: （names not listed in order）

Product Details

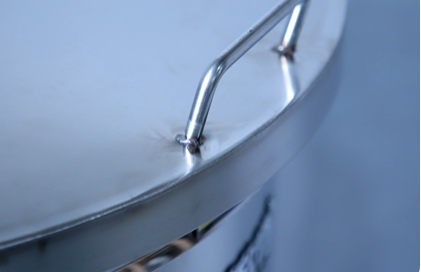

Argon arc welding handle

The solder joint is neat, firm, and anti-dropping

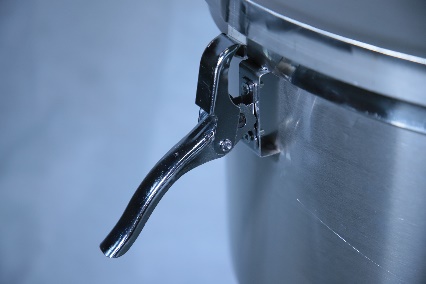

Thickened high-precision buckle

With more secure sealing, all stainless steel thickened buckles can be opened by lifting.

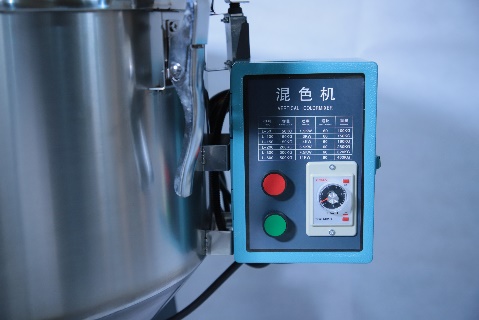

High-quality control box

Built-in wiring board and thermal overload protection, longer service life.

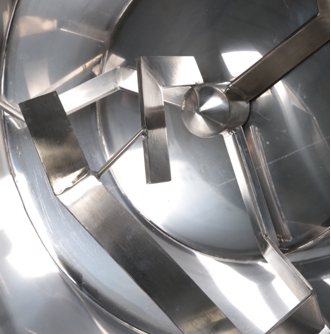

Omnidirectional blade

Precision welding, grinding each node, real material, mixing evenly.

vertical mixing machine unloading opening

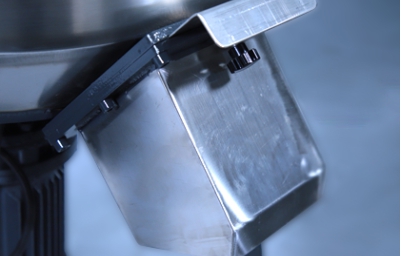

Square blanking port

The square blanking port is suitable for all raw materials, with easy blanking and no jamming.

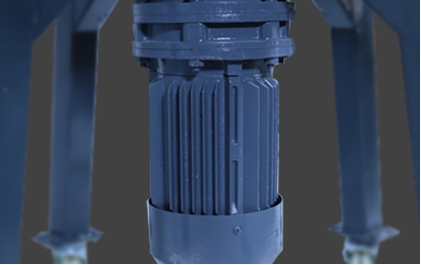

Pure copper motor

All copper core has high power, good heat dissipation, smooth movement, and high performance.

Features:

1. Four-wheel upright design, small volume, easy to move.

2. Spiral circulation stirring makes the raw material mix more uniformly and fast.

3. The contact parts of the equipment and raw materials are all made of stainless steel, which is easy to clean and avoids rust.

4. It is suitable for mixing plastic raw materials and color masterbatch. The mixing effect of new and used materials and color masterbatch is better.

5. The ideal cycloidal reducer motor is directly connected to the mixer, the material is stirred evenly, the blade can be removed, and it is easy to clean.

6. Equipped with AC contactor, with electronic control overheating safety protection device.
