Energy-Efficient Plastic Drying Machine -Lesintor
Minimum Order Quantity：1
LXT-ESDY6KG/LXT-ESDY12KG/LXT-ESDY25KG/LXT-ESDY50KG/LXT-ESDY75KG/LXT-ESDY100KG/LXT-ESDY150KG/LXT-ESDY200KG/LXT-ESDY300KG/LXT-ESDY400KG/LXT-ESDY500KG

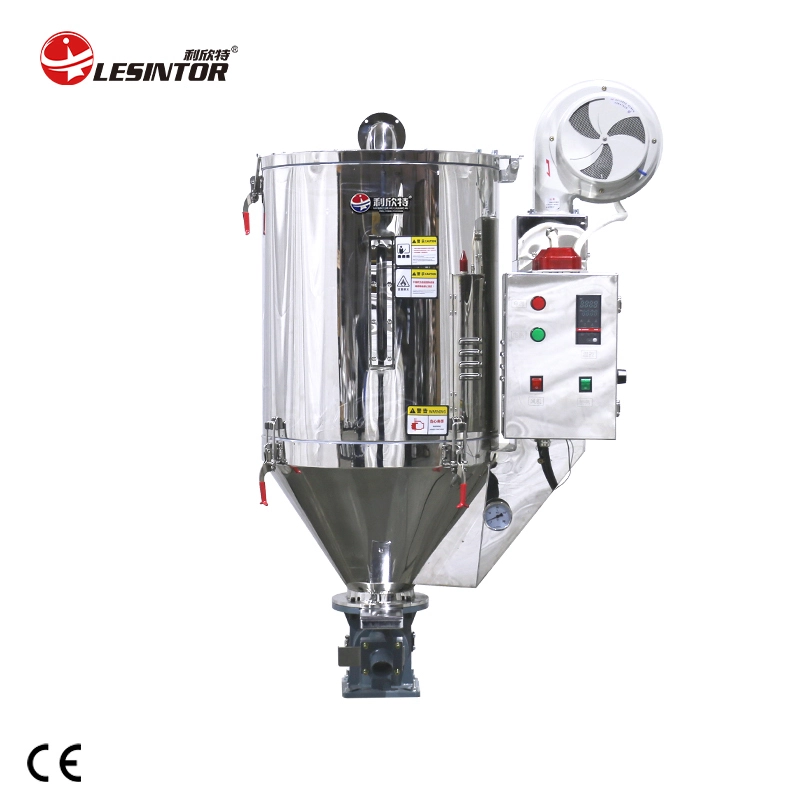

The stainless steel energy-saving hopper dryer is an efficient and economical dryer that is standard for injection molding machines. It can easily dry the moisture in plastic particles and improve the quality of the product without polluting the raw materials.
It can be directlyThen replace the ordinary hopper dryer. Compared with ordinary hoppers, it has an energy saving rate of more than 40%, and has beautiful appearance, low surface temperature, durability and higher drying efficiency. Aerospace grade guaranteeWarm materials, stainless steel double-layer dry insulation reduces heat loss.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameter
| Model | Capacty( KG) | Capacity(W) | Dimension(mm) | Base dimension | Heating power(KW) | Power(KG) |
| LXT-ESDY6KG | 6 | 100 | 210*530*630 | 475 | 1.5 | 160 |
| LXT-ESDY12KG | 12 | 100 | 300*600*790 | 550 | 2.2 | 160 |
| LXT-ESDY25KG | 25 | 135 | 410*730*920 | 765 | 3 | 160 |
| LXT-ESDY50KG | 50 | 155 | 490*790*1105 | 905 | 4.8 | 160 |
| LXT-ESDY75KG | 75 | 155 | 560*900*1200 | 1050 | 5.5 | 160 |
| LXT-ESDY100KG | 100 | 215 | 610*970*1215 | 1100 | 7.8 | 175 |
| LXT-ESDY150KG | 150 | 215 | 650*1010*1350 | 1285 | 8.5 | 190 |
| LXT-ESDY200KG | 200 | 320 | 748*1200*1820 | 1450 | 10 | 220 |
| LXT-ESDY300KG | 300 | 350 | 810*1280*1920 | 1480 | 15 | 220 |
| LXT-ESDY400KG | 400 | 415 | 870*1350*2300 | 1840 | 19 | 270 |
| LXT-ESDY500KG | 500 | 1030 | 810*1280*2400 | 1900 | 21 | 270 |
| Specifications are subject to change without notice. | ||||||
Features
Comparison of power consumption before and after installation:
|
Capacity specification |
Ordinary hopper power |
Consumption Energy-saving hopper |
Dryer power consumption |
Power saving rate |
|
50kg |
3.6 kWh |
2.1kWh |
1.5kWh |
42% |
|
75kg |
4.1kWh |
2.3kWh |
1.8kWh |
44% |
|
100kg |
5.2kWh |
2.8kWh |
2.4kWh |
46% |
|
200kg |
6.7kWh |
3.1kWh |
2.9kWh |
55% |
产品结构
Comparison of power consumption before and after installation:
The above is the measured data based on the set temperature of 120℃ and the indoor temperature of 20℃. Taking 20 50KG hoppers as an example, they work 26 days a month and 24 hours a day.
The data obtained after the transformation is as follows:
● Power saving per hour: 1.5 degrees.
● Daily power saving is: 24 hours * 1.5 degrees = 36 degrees.
● The annual power saving is: 36 kWh * 26 days * 12 months = 11232 kWh.
● The annual power saving of 20 units is: 11,232,000 kWh*20 units=224,640,000 kWh.
Product Details
Conical Screen
The stainless steel screenmakes the bulk material moreuniform.
Control Box
High reliability electrical con-trol components ensurelong-term stable operation.
Fan
Pure copper core motor.Strong power, stable operationand low noise.
High-Precision Buckle
All stainless steel thickenedbuckle, good sealing, can beopened by lifting it up.
Thermometer
Has high sensitivity and caneasily grasp the temperature inthe barrel.
Visual Window
Clearly observe the real-timestatus of materials in the barrel.
Halve your electricity bill - double your drying quality!
● Heat is not dissipated - energy efficiency jumps again:
Adopts aerospace grade nano-microporous heat preservation layer, 360° all-round wrapping the core of the heating block, heat dissipation rate <3%!Compared with the traditional dryer, the heat preservation efficiency is increased by 200%, and the surface temperature is still lower than 45℃ under the continuous high temperature operation.
● Energy saving is money saving - energy saving can be seen:
Heat energy utilization rate is as high as 98%, per ton of plastic pellets processed, power saving ≥ 3.6 kWh (annual electricity saving ≈ 30% of the cost of the equipment),No need for repeated heating, start-up that is to reach the set temperature, the preheating time is shortened by 50%!
