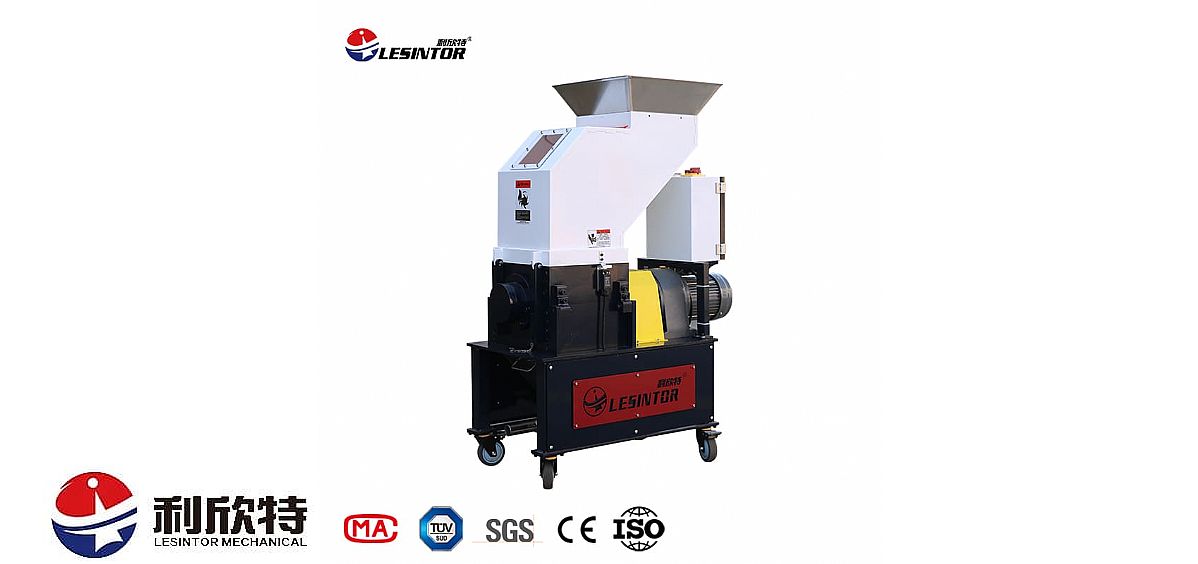

Slow Speed Edge Crusher Machine
Lesintor low-speed edge crusher is widely used in crushing various waste plastic products. Our small plastic shredder machine processing technology is mature, and the product precision is ahead of the same industry. Using Japan-imported SKD-11 special steel gnawing pineapple knife, vacuum heat treatment, no need to sharpen the knife, no screen, uniform particles, and less dust provide a strong basic guarantee for maximizing production efficiency. After years of industrial science and technology crystallization and 500 hours of experimental tests, the product is only about 60-70 decibels under working conditions.
5.0
Shipping Zones:
Worldwide
Delivery Time:
Available on Request
Payment Options:
Available on Request
Ref:
RF01
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Wholesale Slow Speed Edge Crusher Features:
- Slow speed, low noise, low power, high torque.
- Reversible tool, longer lasting and more durable.
- Flexible connection, anti-vibration, long life.
- Visualization of cavity cutting.
- They are cutting without sieve, uniform particles, and less dust.
- Low weight, high safety, and small vibration.
- Multiple safety protection, low-voltage operating parts.
- Convenient transfer and chip room cleaning.
- Fast drag-type motor disassembly and assembly, easy to disassemble and install.
- Modular design quickly provides a variety of options.
Product Parameters:
| Model | 1.5P | 2P | 3P | 5P | 5.5P | 6P | 7.5P | 450 | 10P | ||||||||||
| No. | Product Configuration | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity | Component Specifications |
Quantity |
| 1 | Dimensions | 95*43*125CM | 1 | 110*48*128CM | 1 | 120*48*132CM | 1 | 125*51*134CM | 1 | 134*61*158CM | 1 | 144.5*61*164.5CM | 1 | 165.5*61*169CM | 1 | 130*61*143CM | 1 | 182.4*117.3*188.7CM | 1 |
| 2 | Feed port size | 31.7*24.6CM | 1 | 31.7*31.7CM | 1 | 42.3*31.7CM | 1 | 42.3*35CM | 1 | 47.5*38.4CM | 1 | 60.8*38.7CM | 1 | 60.8*38.7CM | 1 | 44.8*44.8CM | 1 | 67.5*58CM | 1 |
| 3 | Motor power | 1.1KW | 1 | 1.5KW | 1 | 2.2KW | 1 | 3.7KW | 1 | 3.7KW | 1 | 3.7KW | 1 | 5.5KW | 1 | 3.7KW | 1 | 7.5KW | 1 |
| 4 | Moving knife (pineapple knife) | 74*105 | 3 | 89*110 | 3 | 89*110 | 4 | 89*110 | 4 | 100*140 | 4 | 140*100 | 5 | 140*100 | 5 | 89*110 | 4 | 139*140/6 pcs 139*56/2 pcs |
6+2 |
| 5 | Rotary knife (S knife) | 209.5*115*15 | 2 | 268*112*20 | 2 | 268*112*20 | 3 | 268*112*20 | 3 | 328*146*25 | 3 | 328*146*25 | 4 | 328*146*25 | 4 | 368*138*30 | 3 | S Knife | 6 |
| 6 | Fixed knife (edge knife) | 88.8*81*14 for one piece 81.6*81*14 for two pieces |
3 | 88*86.5*12 | 3 | 88*86.5*12 | 4 | 88*102.5*12 | 4 | 99*102.5*12 | 4 | 102.5*99*12 | 5 | 102.5*99*12 | 5 | 137*88*12 | 4 | Width 139 | 8 |
| 7 | Fixed knife (side knife) | 253.5*81*12 | 1 | 88*86.5*12 | 3 | 88*86.5*12 | 4 | 88*102.5*12 | 4 | 99*102.5*12 | 4 | 102.5*99*12 | 5 | 102.5*99*12 | 5 | 137*88*12 | 4 | Width 55 | 8 |
| 8 | Power cord specifications | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 5*1.5 | Square | 4*4 | Square |
| 9 | Power cord length | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter | 5 | Meter |
| 10 | Total weight | 200 | kg | 270 | kg | 310 | kg | 350 | kg | 550 | kg | 600 | kg | 600 | kg | 500 | kg | 1900 | kg |
| 11 | Blade material | CR12MOV | CR12MOV | CR12MOV | CR12MOV | CR12MOV | CR12MOV | CR12MOV | CR12MOV | CR12MOV | |||||||||
| 12 | Tool structure | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | Claw knife + rolling knife | |||||||||
| 13 | Spindle speed | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute | 24 turns | /minute |
More details:

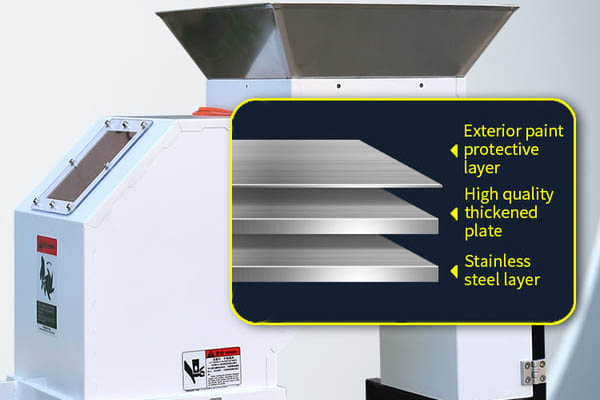

| STAINLESS STEEL UPPER BOX Sound insulation and noise reduction: Easy to wash and rust-proof. Avoid contamination of raw materials. |

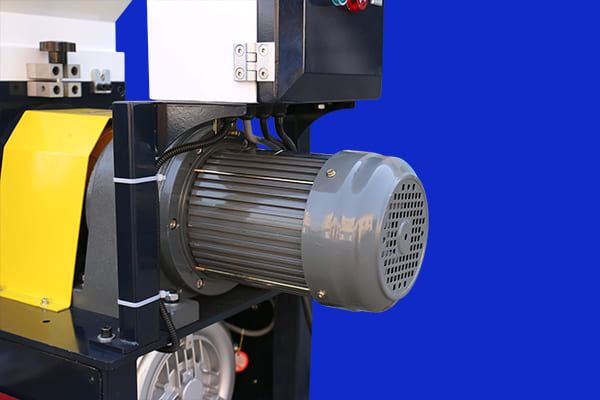

THE PURE COPPER MOTOR The gear reducer and the main shaft are linked by sprockets, which are durable and powerful. |
| SEMI-DEVELOPED CRUSHING CHAMBER DESIGN The crushing chamber is divided into upper and lower split structures cleaner and cleaner. |

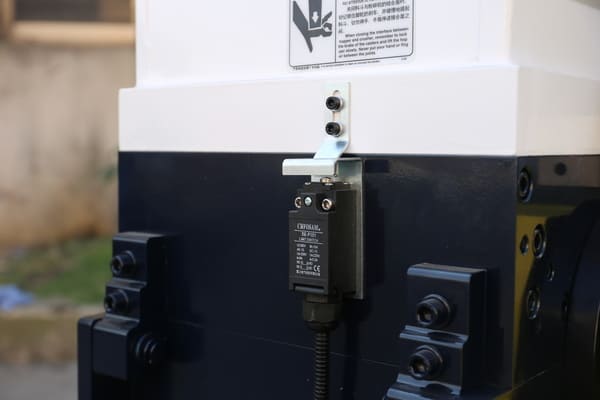

THE TRAVEL SWITCH Turned on, the case automatically runs temporarily to reject potential accidents. |

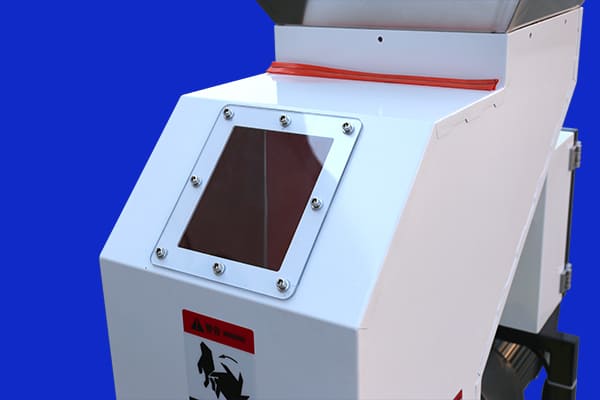

| VISIBLE WINDOW internal crushing dynamics at a glance |

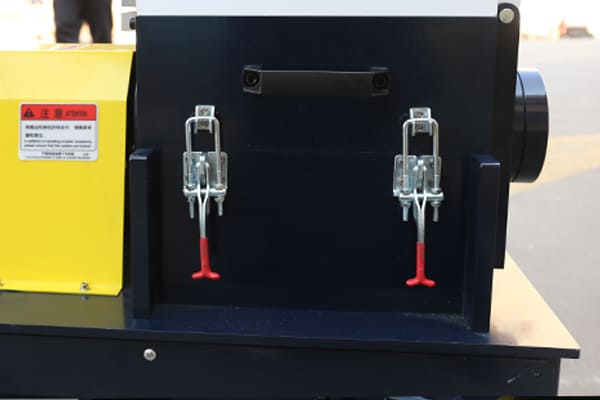

SAFETY CLASP ergonomic design, strong, stable, ensure personnel safety, and easy to clean the cabin |

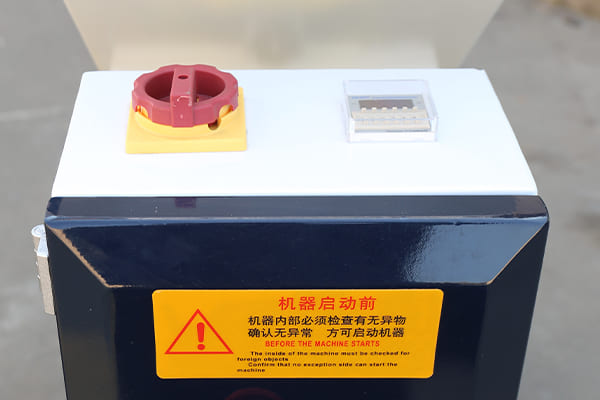

| TIME RELAY SETS The machine starts and stops running time, saving energy and power. |

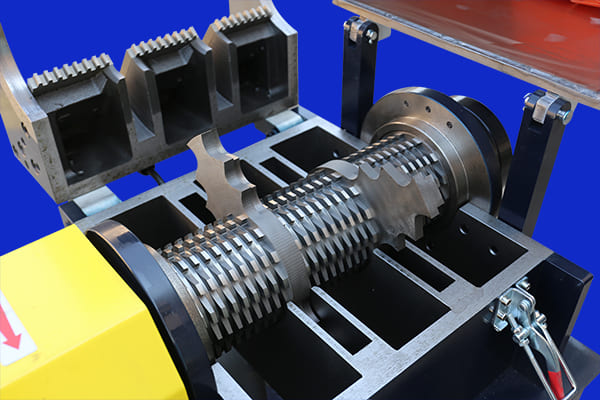

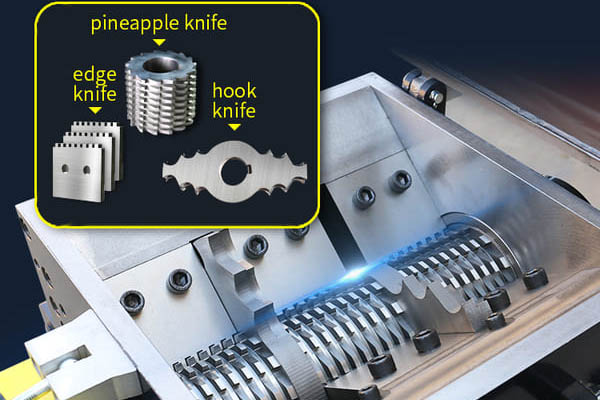

The pineapple knife is precision forged with imported special SKD11, quenched at 1030℃, and tempered many times. The hardness can reach HRC59-6l degrees. It is highly wear-resistant, has zero dust, and has uniform particles. |
