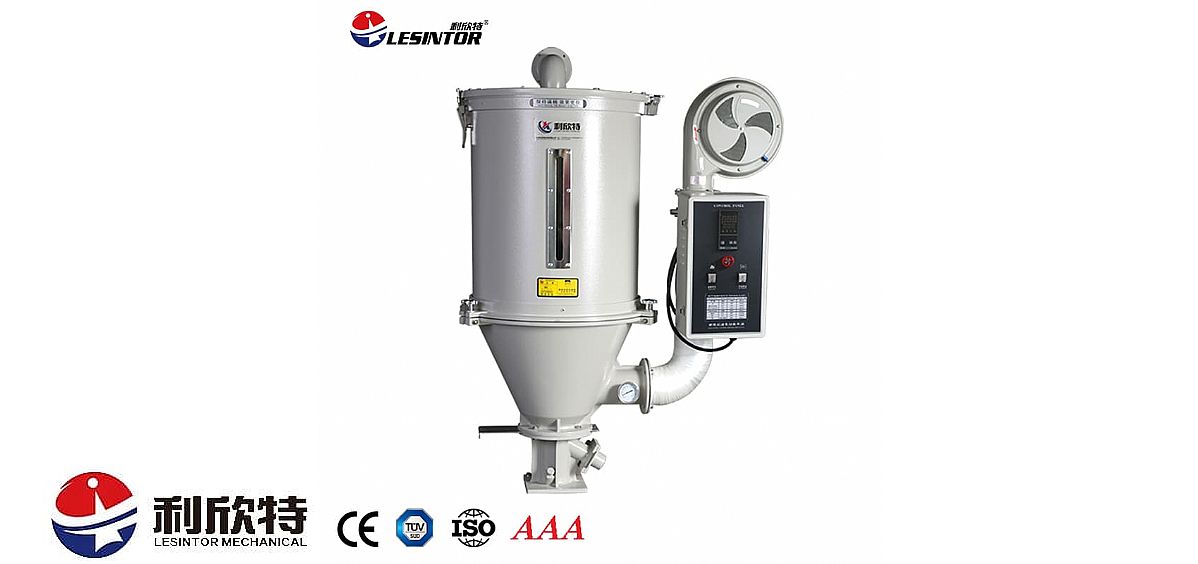

Plastic Hopper Dryer Machine

Lesintor plastic hopper dryer machines have many applications and are versatile and compatible with a wide range of plastic molding machines. The plastic raw materials are loaded into the heat-drying machine. The product's heat removes the water content on the surface or inside of the plastic particles so that the raw materials fully dry and effectively prevent poor quality phenomena such as bubbles, silver streaks, cracks, and poor transparency produced after plastic molding. It can be used with a recycling system.

Shipping Zones:

Worldwide

Delivery Time:

Available on Request

Payment Options:

Available on Request

Ref:

PD01

Inquiry

Write a Review

Plastic Hopper Dryer Machine Features:

The dryer machine adopts the performance heat diffusion device of uniform dispersion heat to keep the drying temperature of plastics uniform, increase the temperature uniformity, and increase the drying efficiency.
The special bending design of the hot air pipe can prevent the powder from accumulating at the bottom of the heat pipe and causing combustion.
The barrel is made of stainless steel.
Compact die-casting aluminum shell, smooth surface, good thermal insulation performance.
Dust separation and static machine to eliminate dust from raw materials and ensure the purity of raw materials.
The can body and base are designed with a material viewing window, which allows users to observe the internal working conditions directly.
It is equipped with an overheat protection device to reduce accidents caused by accidents or mechanical failures.
Heat evenly, refuse to burn or clump; Double the high-temperature alarm.

Drying effects

Dryer Machine effects

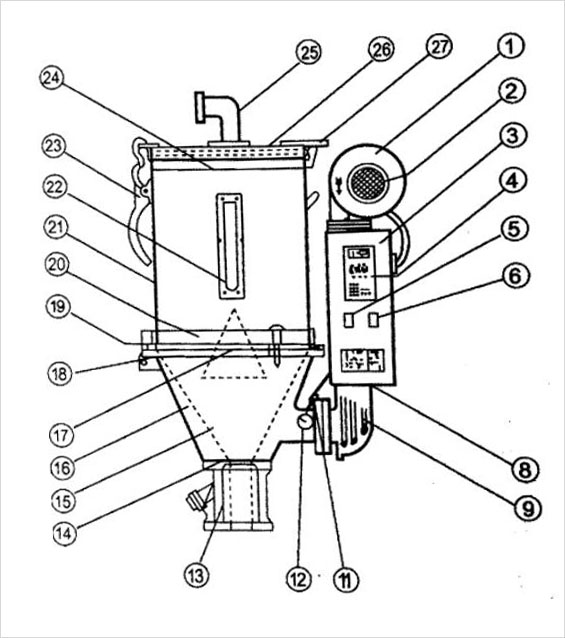

Dryer Machine Internal structure

1ï¼ Fan 2ï¼ Air Damper 3ï¼ Contro-Box 4ï¼E1ectronic Thermo-controller 5ï¼ Fan Switch 6ï¼ Heater Switch 8ï¼ Heating Cylinder 9ï¼R.H.Pipe Heater 11. Thermo-couple 12ï¼ Thermo-meter 13. Base 14ï¼ Gate 15ï¼ Shade Separator 16ï¼ Hopper 17ï¼Hopper 18ï¼ Leaf of hopper 19ï¼Silica Gel 20. Down Ring 21ï¼Drying Hopper 22ï¼ Sight Case 23ï¼ Handle 24ï¼ Up Ring 25ï¼Ellow 26ï¼ Cover 27ï¼Leaf of cover

Product parameters

Model	Power Supply	capacity（KG）	Power（KW）	Fan(W)	Outline size(MM)	Base size(MM)	Net weight(KG)
15KG	380V 50HZ （customizable)	15	2.7	120	640440760	11011040	22
25KG		25	3.5	122	7605001040	16016062	34
50KG		50	4.5	157	8705401210	16016070	45
75KG		75	5.5	220	9406001310	16016070	56
100KG		100	6.5	246	10007001400	18018080	68
150KG		150	9	350	11007401620	20020088	78
200KG		200	12	400	11808401760	240240120	110
250KG		250	14	400	11808401830	240240120	125
300KG		300	15	750	142010001830	240240120	152
400KG		400	16	750	148010602020	280280120	170
500KG		500	18	750	148010602220	280280120	220
600KG		600	20-24	800	158011602400	280280135	280
800KG		800	30	1100	158011602400	280280135	380

More details:

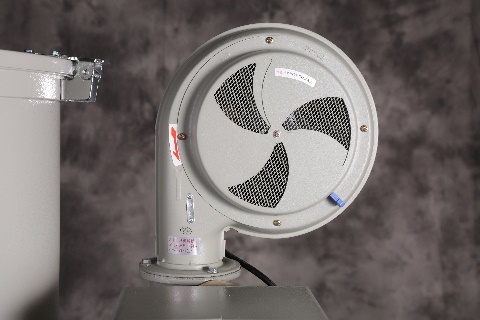

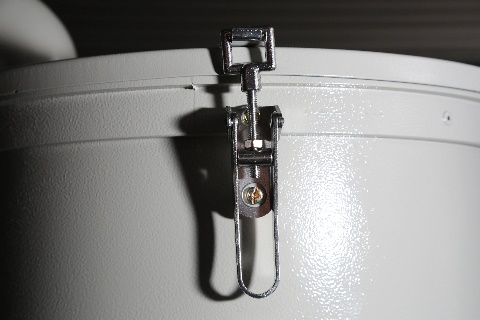

Draught Fan Copper core motor, strong power, stable operation, low noise.	High precision lock The stainless steel buckle is strong and durable and has good sealing.

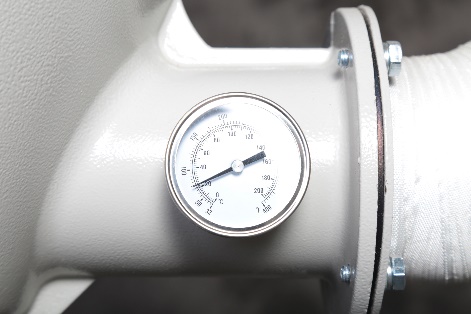

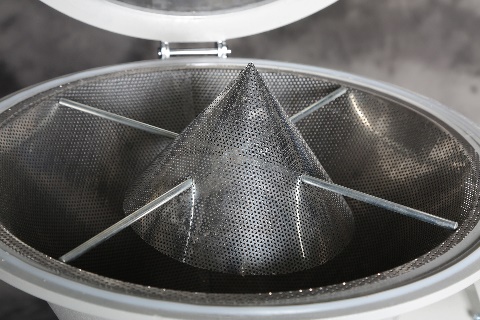

Conical Screen Large elevation angle, large air volume, low speed, silent external rotation axial fan, 30% energy saving in sound effect.	Thermometer Lightweight, stable throttling, light corrosion resistance.

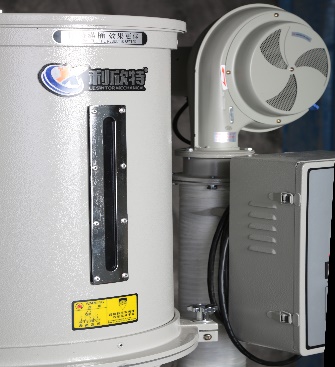

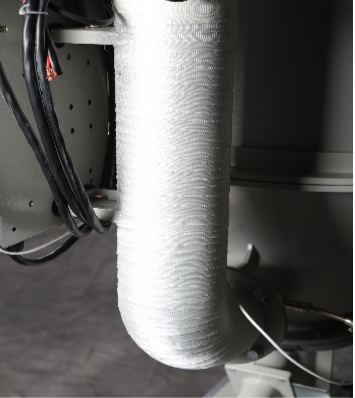

Air Duct Thickened asbestos cloth + heat insulation cloth.	Visible Window It is convenient to observe the material condition in the barrel.
