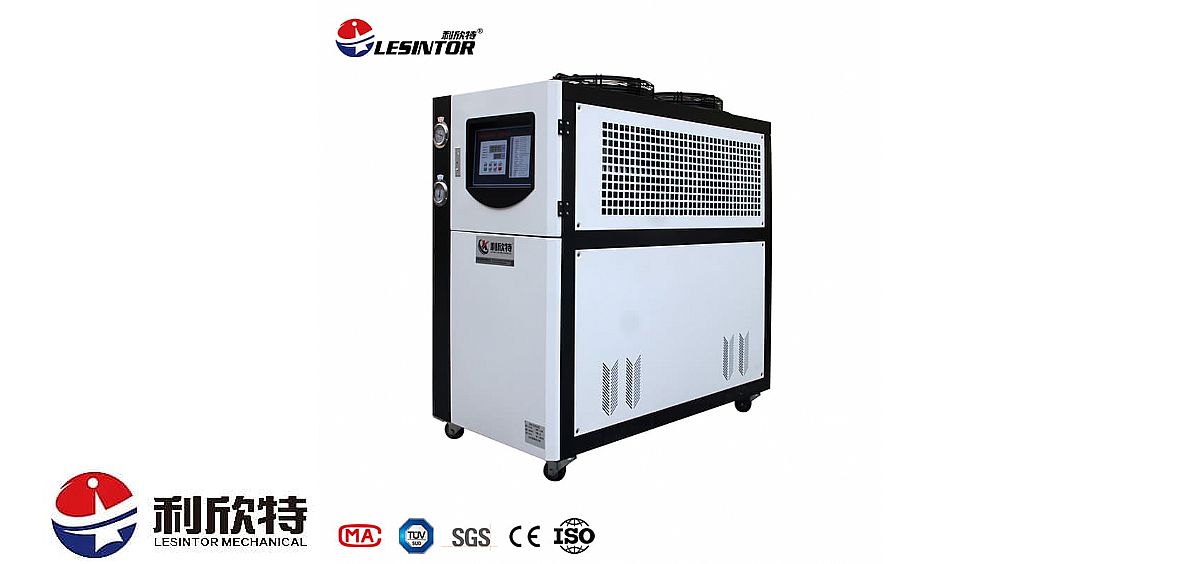

Portable Cold Air Chiller Machine

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes an air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.

Shipping Zones:

Worldwide

Delivery Time:

Available on Request

Payment Options:

Available on Request

Ref:

ACM02

Inquiry

Write a Review

Machine characteristics for air water-cooled chiller:

High efficiency and low failure
Small vibration and low noise
Stable operation, energy-saving, and power-saving
Convenient maintenance, long life, and other advantages

Product Parameters:

Air Cooled Chiller
Parameter/Model		01AC	02AC	03AC	05AC	08AC	20AC	25AC	30AC
Cooling Capacity	KW/hr	2.94	5.67	8.39	13.95	21.80	59.08	71.72	87.20
Cooling Capacity	Kcal	2528	4872	7216	11990	18747	50805	61683	74992
Temperature Range		5℃-room temperature(Below 0℃ Could be Customized)
Voltage		1N-220V 50HZ		3N-380V 50HZ
Power	KW	1.27	2.02	2.85	4.86	7.65	18.80	22.75	28.50
Control Method		Capillary Tube Type					Expansion Valve
Compressor	Type	Hermetic Scroll Type or Piston
	Quantity	1	1	1	1	2	2	2	3
	Power(KW)	0.75	1.50	2.20	3.75	6.00	15.00	18.75	22.00
	Refrigerant	R22
Fan	Air Volume	1000	2000	3000	5000	8000	20000	25000	30000
	Size(MM)	350	350	350	400	450	500	500	550
	Quantity	1	1	2	2	2	4	4	4
	Power	0.14	0.14	0.17*2	0.23*2	0.43*2	0.55*4	0.55*4	0.55*4
Condenser	Form	Efficient Brass Sets Corrugated Aluminum Fin
Evaporator	Water Volume(M3/H)	0.51	0.97	1.44	2.40	3.75	10.16	12.34	15.20
	Water Capacity(M3)	0.028	0.040	0.050	0.065	0.130	0.280	0.320	0.320
	Water Tank Capacity(L)	30	45	45	65	140	245	270	300
	Import and Export Caliber	DN20	DN25	DN25	DN25	DN40	DN50	DN65	DN65
Pump	Water Discharge(L/MIN)	90	90	90	90	170	800	800	800
	Water-lift(M)	18	18	18	18	14	21	24	24
	Power(KW)	0.37	0.37	0.37	0.37	0.75	4.00	4.00	4.00
Dimension	L(MM)	436	750	1040	1300	1500	2000	2000	2400
	W(MM)	337	520	570	650	700	1100	1100	950
	H(MM)	753	800	1000	1100	1250	1780	1780	1780

More details:

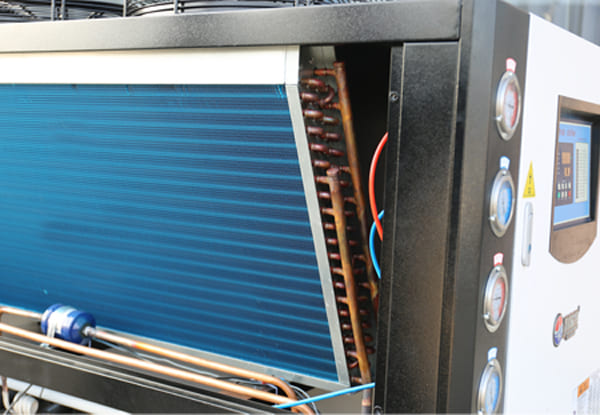

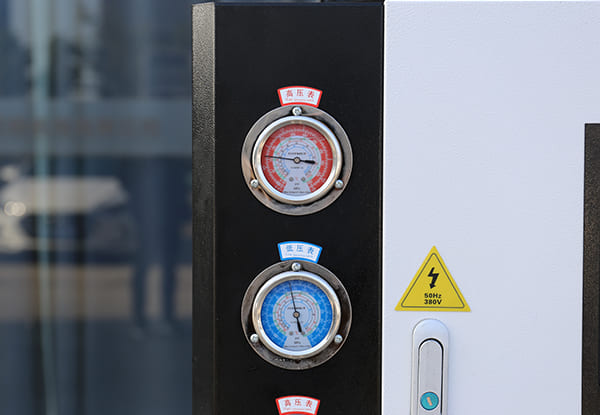

Condenser External corrugated hydrophilic aluminum foil to increase heat dissipation area, internal all-copper high-efficiency condenser	High and low-pressure refrigerant oil gauge Adopt brand oil gauge, with clear digital display and accurate data

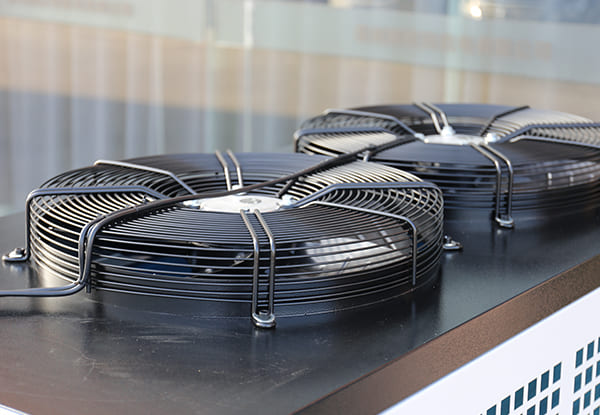

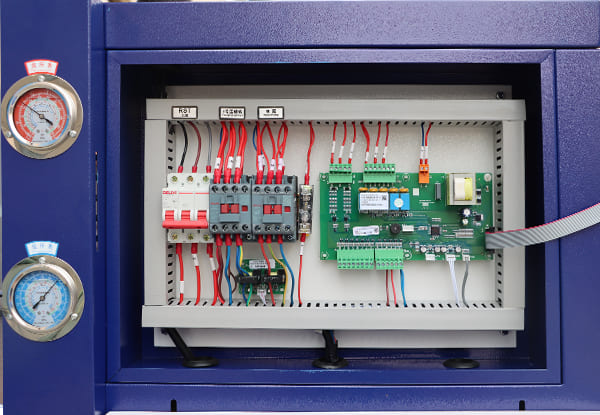

Top fan External axial flow fan, effectively saving 30% of energy	Control box Highly reliable electrical components and professional control programs ensure long-term, stable operation.

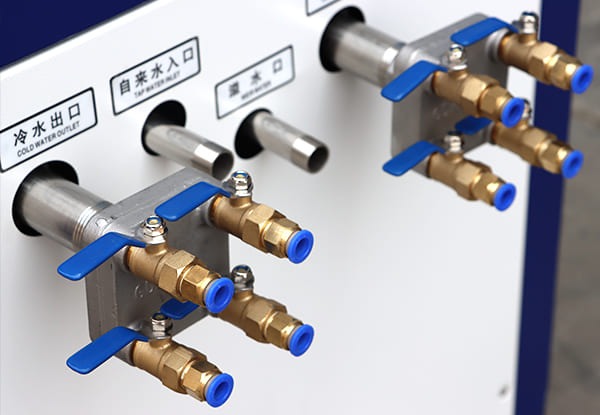

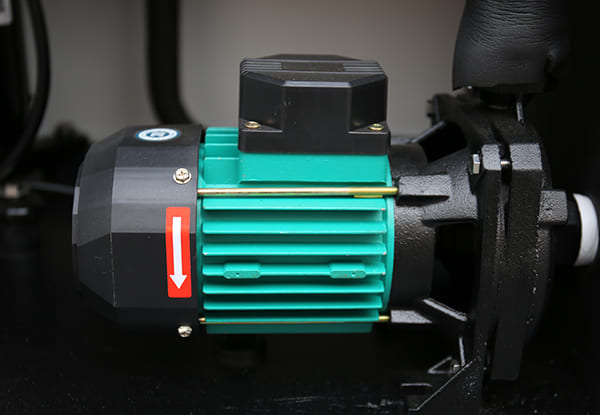

Brand pump Lightweight, stable throttling, light corrosion resistance	Anti-corrosion water drain 5HP (including 5HP) and below are equipped with four-inlet and four-outlet water drainage

Product Features

The cooling temperature ranges from 5℃ to 50℃.
304 stainless steel insulated water tank; Anti-icing protection device.
R22 refrigerant is adopted, and the refrigeration effect is good.
High and low-voltage switches control the refrigeration circuit.
The compressor and pump have overload protection.
External rotor fan plus fin condenser has a good heat transfer effect and fast heat dissipation. (cooling circulating water is not required; it can be directly used after being electrified and receiving water)
copper coil evaporator, excellent refrigeration effect.
An intelligent microcomputer control system is adopted, and the temperature control accuracy can reach 2℃.
Simple operation, reasonable structural design, and convenient maintenance.
