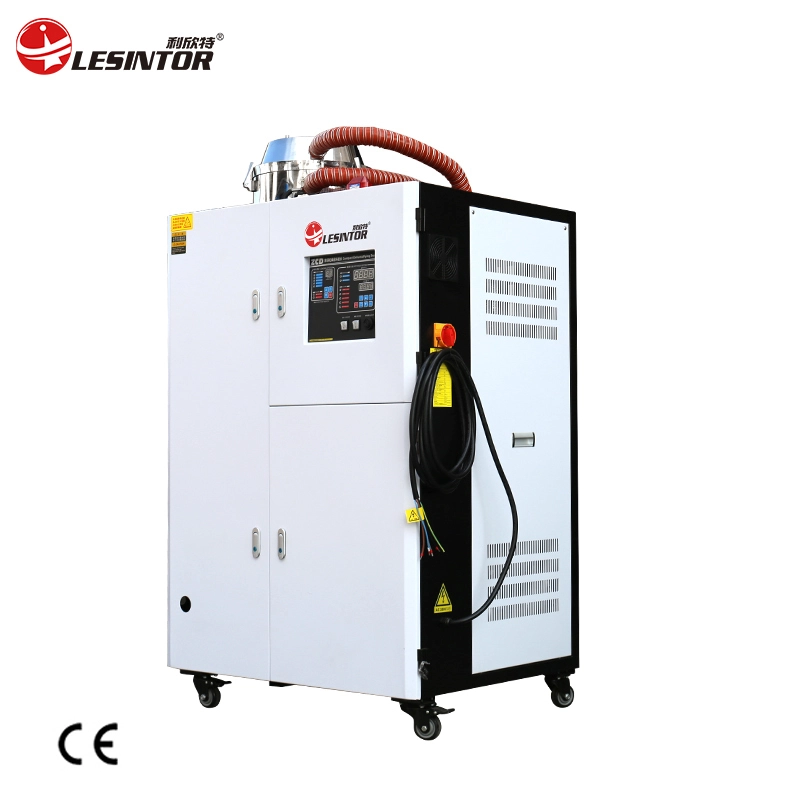

High-Efficiency European-Style Plastic Pellets Dehumidifying Dryer -Lesintor1

Minimum Order Quantity：1

LXT-CDY25KG/LXT-CDY50KG/LXT-CDY75KG/LXT-CDY100KG/LXT-CDY150KG/LXT-CDY200KG/LXT-CDY300KG/LXT-CDY400KG/LXT-CDY500KG/LXT-CDY600KG/LXT-CDY800KG/LXT-CDY1000KG

Dehumidification and drying feeding machine integrated withthree honeycomb dehumidifier,insulation type drying cylindercomposed of suction machine, all equipment installed in aportable tripod, is a set of dehumidification, drying, feedingthree functions in one, suitable for all kinds of plastic rawmaterials, especially strong hygroscopic engineering plastic.such as PA, PC, LCP, PET, PBT and so on, in the ideal statecan reach -40 or -50'Cdew point.

Inquiry

Write a Review

Technical Parameter

Model		LXT-CDY25KG	LXT-CDY50KG	LXT-CDY75KG	LXT-CDY100KG	LXT-CDY150KG	LXT-CDY200KG
Voltage		3C400V50Hz
Hopper capacity		40L	80L	120L	160L	230L	300L
Dehumidification air volume		50m3/Hr	50m3/Hr	80m3/Hr	80m3/Hr	120m3/Hr	150m3/Hr
Drying	Heating power(KW)	3.9KW	3.9KW	6KW	6KW	6KW	7.2KW
Drying	Capacity(KW)	0.4KW	0.4KW	0.75KW	0.75KW	0.75KW	1.5KW
Dehumidification	Heating power(KW)	3KW	3KW	3.5KW	3.5KW	3.5KW	4KW
Dehumidification	Capacity(KW)	0.18KW	0.18KW	0.25KW	0.18KW	0.18KW	0.4KW
Feeding fan power		0.75KW	0.75KW	1.5KW	0.75KW	1.5KW	1.5KW
Overall dimensions(mm)		87510401550	87511051800	83511151990	87511901860	87511902070	102014602160
Suction machine piping		38.1mm	38.1mm	38.1mm	38.1mm	38.1mm	38.1mm
Vacuum hopper		3L	6L	6L	6L	12L	12L
Vacuum hopper		3L	6L	6L	6L	12L	12L

Model		LXT-CDY300KG	LXT-CDY400KG	LXT-CDY500KG	LXT-CDY600KG	LXT-CDY800KG	LXT-CDY1000KG
Voltage		3¢ 400V50Hz
Hopper capacity		450L	600L	750L	900L	1200L	1500L
Dehumidification air volume		200m3/Hr	300m3/Hr	400m3/Hr	500m3/Hr	700m3/Hr	1000m3/Hr
Drying	Heating power(KW)	7.2KW	15KW	18KW	21KW	24KW	24KW
Drying	Capacity(KW)	1.5KW	2.4KW	3.75KW	5.5KW	5.5KW	5.5KW
Dehumidification	Heating power(KW)	5.4KW	7.2KW	7.2KW	10KW	10KW	10KW
Dehumidification	Capacity(KW)	0.4KW	0.75KW	0.75KW	1.5KW	1.5KW	1.5KW
Feeding fan power		1.5KW	1.5KW	1.5KW	2.4KW	2.4KW	2.4KW
Overall dimensions(mm)		102013602350	125517452380	125517452610	138021402540	138021403070	138021403070
Suction machine piping		38.1mm	38.1mm	38.1mm	50mm	50mm	50mm
Vacuum hopper		12L	12L	12L	24L	24L	24L
Vacuum hopper		12L	12L	12L	24L	24L	24L
Specifications are subject to change without notice.

Features

● The heat insulation drying barrel is designed with the lower blow pipe, with the cyclone exhaust device to prevent the heatloss and provide the drying efficiency.

● With the closed loop feeding system, the drying materials can be avoided again by contact with the outside air.

●The P.I.D temperature control series is standard. it also provides PLC control and LCD touch human-machine in terface. itcan provide dew point meter for real-time mon itori ng of machine dehumidification effect.

产品结构

Comparison of power consumption before and after installation:

The above is the measured data based on the set temperature of 120℃ and the indoor temperature of 20℃. Taking 20 50KG hoppers as an example, they work 26 days a month and 24 hours a day.

The data obtained after the transformation is as follows:

● Power saving per hour: 1.5 degrees.

● Daily power saving is: 24 hours * 1.5 degrees = 36 degrees.

● The annual power saving is: 36 kWh * 26 days * 12 months = 11232 kWh.

● The annual power saving of 20 units is: 11,232,000 kWh*20 units=224,640,000 kWh.

产品结构

Product Selection Guide

Product Details

Conical Screen

The stainless steel screenmakes the bulk material moreuniform.

Control Box

High reliability electrical con-trol components ensurelong-term stable operation.

Fan

Pure copper core motor.Strong power, stable operationand low noise.

High-Precision Buckle

All stainless steel thickenedbuckle, good sealing, can beopened by lifting it up.

Thermometer

Has high sensitivity and caneasily grasp the temperature inthe barrel.

Visual Window

Clearly observe the real-timestatus of materials in the barrel.

Halve your electricity bill - double your drying quality!

● Heat is not dissipated - energy efficiency jumps again: adopts aerospace grade nano-microporous heat preservation layer, 360° all-round wrapping the core of the heating block, heat dissipation rate <3%!Compared with the traditional dryer, the heat preservation efficiency is increased by 200%, and the surface temperature is still lower than 45℃ under the continuous high temperature operation.

● Energy saving is money saving - energy saving can be seen: Heat energy utilization rate is as high as 98%, per ton of plastic pellets processed, power saving ≥ 3.6 kWh (annual electricity saving ≈ 30% of the cost of the equipment),No need for repeated heating, start-up that is to reach the set temperature, the preheating time is shortened by 50%!

FAQs

What is the key advantage of this 3-in-1 system compared to separate units?

It integrates dehumidifying, drying, and conveying in one compact mobile unit, saving 30%+ floor space, reducing energy costs by centralized control, and minimizing material exposure to ambient humidity.

How does the -40°C/-50°C dew point benefit processing hygroscopic resins like PA or PC?

Ultra-low dew point removes moisture at molecular level, preventing hydrolysis (degradation) in resins. Essential for achieving bubble-free parts and maintaining mechanical strength in engineering plastics.

Is the system compatible with voltage standards in our region (e.g., 110V/60Hz or 220V/50Hz)?

Yes, we offer customizable voltage (110V-480V) and frequency (50/60Hz) options. Specify your local standards when ordering.

Can it handle high-temperature drying for materials like PET/PBT (requiring 150-180°C)?

Absolutely. The insulated drying hopper maintains temperatures up to 200°C with ±1°C precision, suitable for all engineering plastics.

What is the maintenance requirement for the honeycomb desiccant rotor?

The rotor is self-cleaning and lasts 8-10 years with minimal upkeep. Annual airflow calibration is recommended to ensure peak efficiency.

How is material contamination prevented during conveying?

Stainless steel contact parts, HEPA filters (optional), and closed-loop pneumatic conveying ensure ≤0.01% contamination risk.

What production capacity (kg/hr) can this system support?

Models range from 50kg/hr to 500kg/hr. We’ll recommend based on your material type, hopper size, and throughput needs.

Does it comply with international safety certifications (CE, etc.)?

Yes. All units meet CE standards.

What if we need technical support after purchase?

We offer 24/7 remote assistance + global spare parts network. On-site training available for bulk orders. Standard warranty: 1 years.

Can the system be customized for automation (e.g., link to PLC or MES)?

Yes. RS-485/Modbus communication and IoT-ready interfaces (optional) allow integration with smart factories for real-time monitoring.
